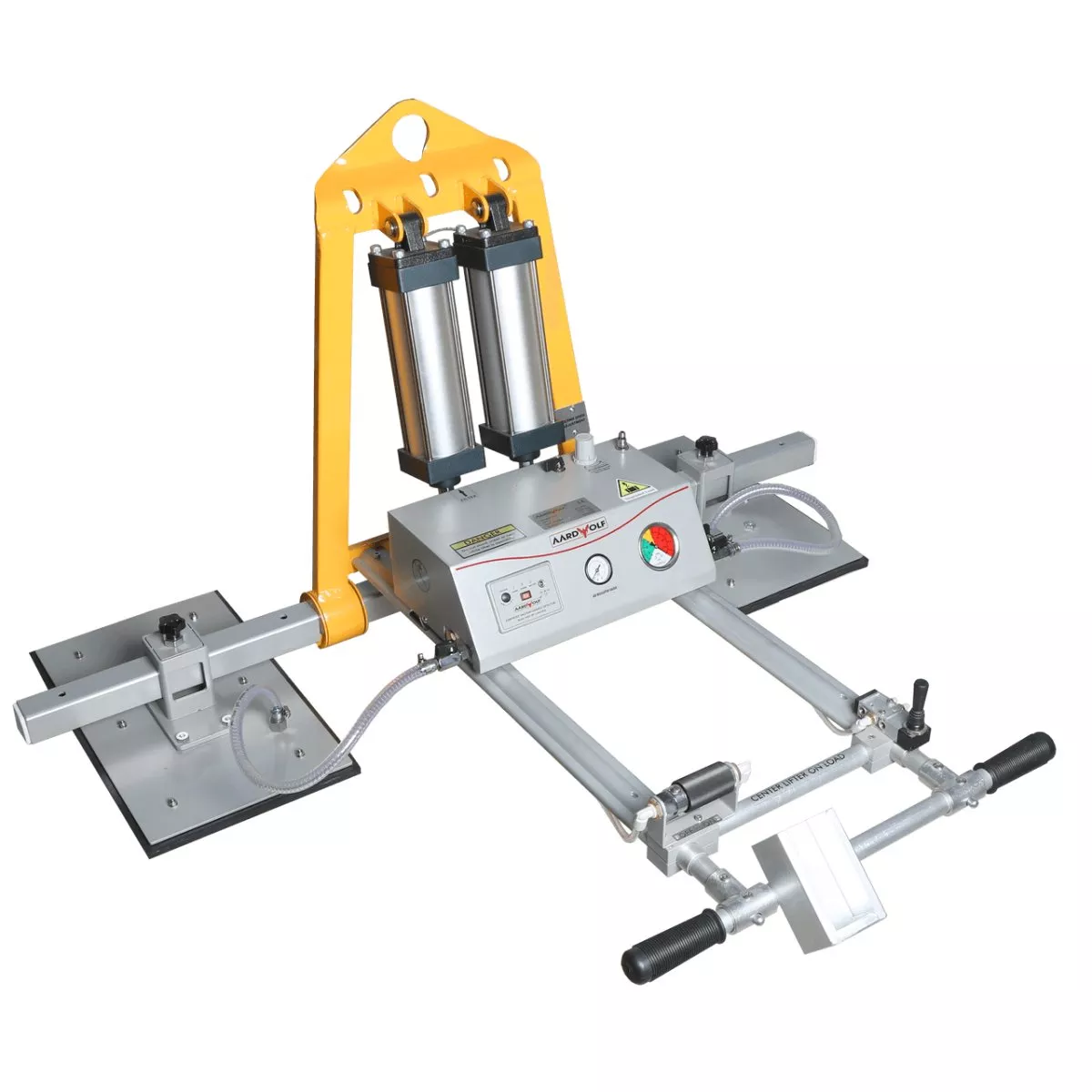

This vacuum lifter is designed to lift smooth or rough marble and granite slabs.
Featuring rugged construction with the ability to lift and tilt materials. Powered by compressed air.
Features
- Pneumatic vertical-horizontal tilting from 0 to 90° by a pneumatic piston.
- The vacuum tank ensures safe pickup in the event of a sudden power break to the vacuum pump.
- Acoustic and visual alarm system powered by a rechargeable 12V Li-on battery.
- Slide valve with ON/OFF position for attaching and releasing of material.
Specifications
| |
Metric (mm-kg) |
Imperial (inch-lb) |
| Number of pads |
2 |
– |
| Pad size |
520×320 |
20.5″x12.6″ |
| Working load limit |
Vertical:250
Horizontal:500 |
551
1102 |
| Net weight |
80 |
176 |
| Gross weight |
109 |
240 |
| Packaging dimensions |
L.1480xW.390xH.960 |
58.3″x15.3″x37.8″ |
- Battery information for the device
| Code battery |
GBA 12V 2.0Ah Bosch |
| Type battery |
Lithium-ION |
| Voltage |
12V |
| Current |
2.0Ah |
| Quantity |
1 |
| Continuous operation time with mode-saving pressure |
2 hours |
| Working time with mode saving pressure |
6 hours |
| Continuous operation time with mode audio alarm only |
120 hours |
| Working time with mode audio alarm only |
360 hours |
| Code battery |
GAL 12V-40 Bosch |
| Input supply voltage |
220-240VAC |
| Output voltage |
12V |
| Output current |
4.0Ah |
| Quantity |
1 |
| Full charger time |
0.5 hour |
| Weight |
460 gram |
- Compressed air requirement
| Air consumption |
180 liters/minute |
| Supply air pressure |
5 bars (72 psi) |
