Specifications
- Ship Weight : 0.01 LBS.
- Height (in) : 1
- Length (in) : 1
- Width (in) : 1

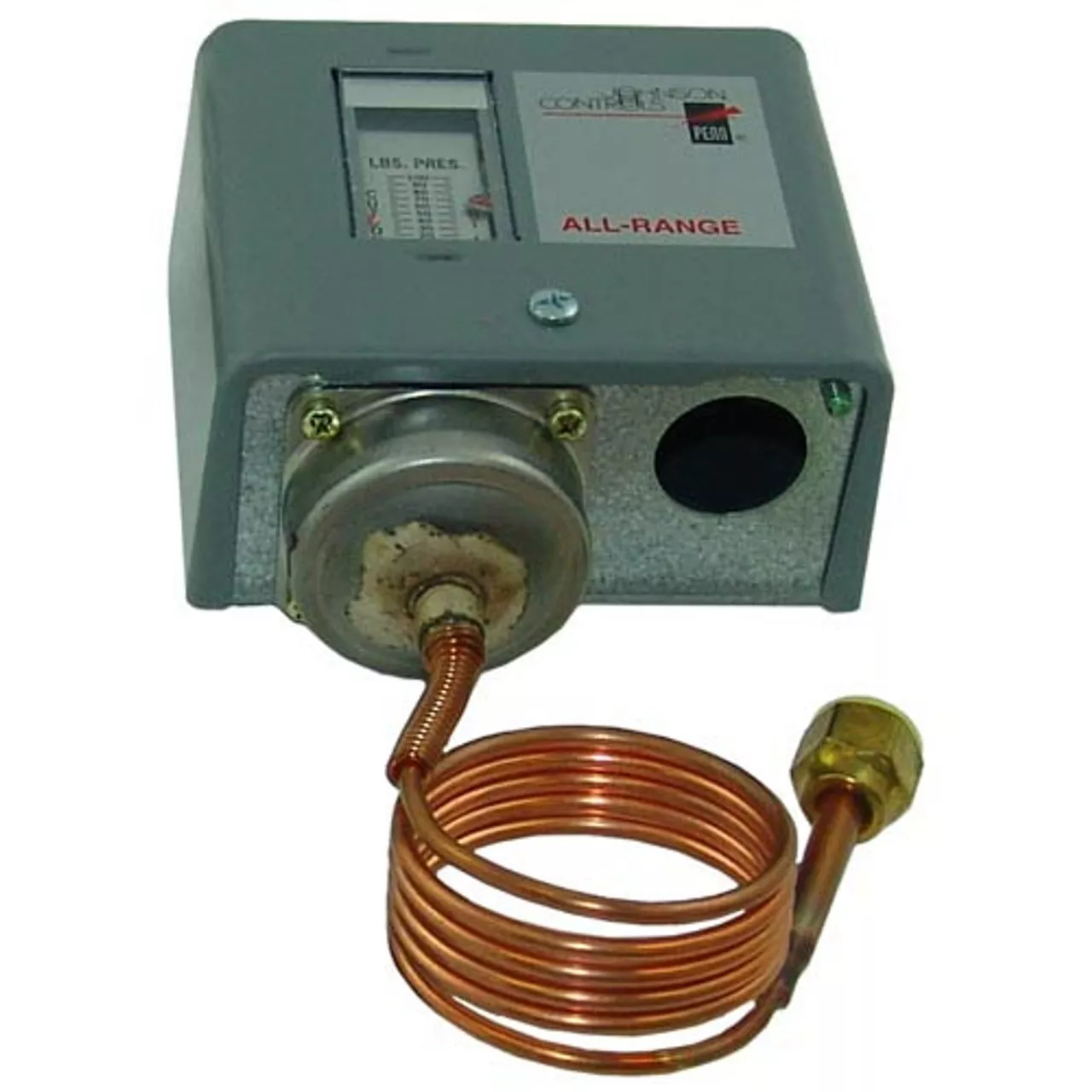

DescriptionJOHNSON CONTROL FOR LOW PRESSURE APPLICATIONS.ALL RANGE CONTROLRANGE 20″ TO 100″ (-68 TO 690 kPa)DIFFERENTIAL MIN 7″ (48 kPa) MAX 50″ (345 kPa)PRESSURE CONNECTION 36″ CAP W/ 1/4″ FLARE NUTMAX WORKING PRESSURE 325″ (2239 kPa)MAX OVER-PRESSURE 100″ (690 kPa)LIMITED KNOB ADJ (SUPPLIED/NOT ASSEMBLED)SWITCH ACTION SPST (OPEN HIGH)CODE P70AB-2C, NON-CORROSIVE REFRIGERANTSDESIGNED PRIMARILY FOR LOW PRESSURE CUT-OUT CONTROL ANDCAPACITY CONTROL ON COMMERCIAL REFRIGERATION AND AIRCONDITIONING APPLICATIONS.
