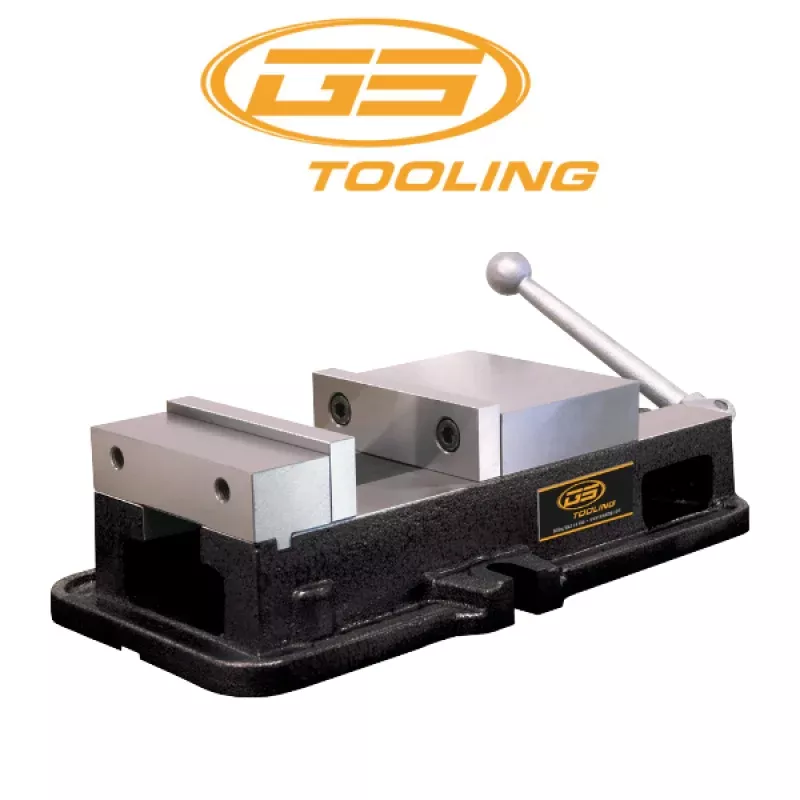

Precision Milling Machine Vice
Dimensions:
- Jaw Width: 8″
- Jaw Height (Decimal Inch) : 2.25″
- Jaw Opening Capacity: 10″
- Overall Length (Decimal Inch) : 21.8″
- Base Height (Decimal Inch) : 3.310″
- Overall Width (Decimal Inch) : 11.62″
- Overall Height (Decimal Inch) : 5.55″
Orientation Type: Horizontal
Number of Stations: 1
Vises are Matched
An integral key and large fasteners reduce deflection by 50%
4 jaw plate positions allow extra capacity with the jaw plates in the outside position
The swivel base is graduated 360 in one degree increments
Chip cover protects leadscrew from damage
The quality movable jaw does not lift off the bed, and the deflection of the stationary jaw is minimized
*This item is stocked at Sowa Tool. All orders for this item will take 2-3 days to arrive*
01/24
327300
Sowa/GS Tooling
