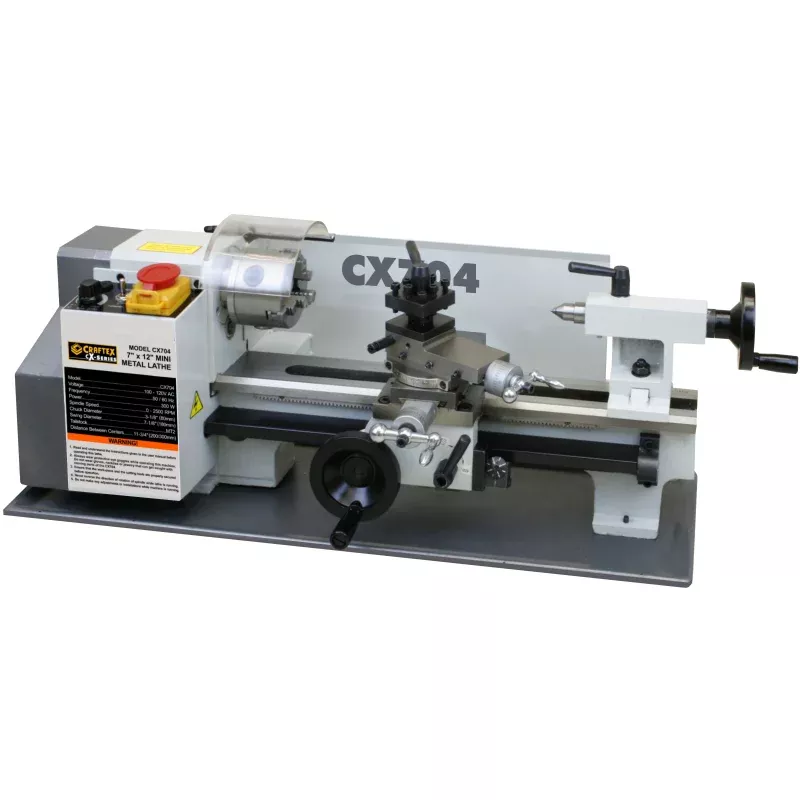

The CX704 7″ x 12″ Mini Metal Lathe delivers the control, precision, and practical features of a larger lathe in a compact format suited to hobby machinists and smaller workshops. Its variable-speed control lets you adjust spindle speed to match the material and operation, while the forward and reverse switch provides convenient control over spindle rotation.
Built with a cast iron bed and cast iron headstock, the CX704 provides a stable platform for turning small metal components. It offers two variable-speed ranges, a 20 mm spindle bore, an MT3 spindle taper, and an MT2 tailstock taper. Inch and metric threading capability, a threading dial indicator, and a complete set of change gears add versatility for a wide range of small machining projects.
The CX704 also includes a three-jaw chuck, chip tray, and splash guard. Like other Craftex CX-Series machines, it features durable powder-coated paint, a two-tone finish, and a three-year warranty.
Features
-
Compact 7″ swing-over-bed and 12″ distance-between-centres capacity
-
1/2 HP, 110V single-phase motor
-
Variable spindle speed for matching speed to the machining operation
-
Two speed ranges: low from 0 to 1,100 RPM and high from 0 to 2,500 RPM
-
Forward and reverse spindle rotation
-
Cast iron bed and headstock construction
-
20 mm spindle bore
-
MT3 spindle taper
-
MT2 tailstock taper
-
Inch and metric threading capability
-
Threading dial indicator
-
Inch and metric graduations
-
Complete set of change gears
-
Three-jaw chuck
-
Chip tray and splash guard
-
Powder-coated two-tone finish
-
Three-year warranty
Specifications
-
Model: CX704
-
Motor: 1/2 HP
-
Voltage: 110V
-
Frequency: 60 Hz
-
Phase: Single phase
-
Current: 3 amps
-
Speed control: Variable
-
Low speed range: 0 to 1,100 RPM
-
High speed range: 0 to 2,500 RPM
-
Swing over bed: 7″
-
Distance between centres: 12″
-
Swing over cross slide: 2-1/8″
-
Swing over saddle: 5″
-
Compound slide travel: 2-3/4″
-
Carriage travel: 10-1/2″
-
Cross slide travel: 2-3/4″
-
Maximum tool bit size: 5/16″
-
Headstock construction: Cast iron
-
Spindle bore: 20 mm
-
Spindle size: 3″
-
Spindle taper: MT3
-
Tailstock travel: 2-1/2″
-
Tailstock taper: MT2
-
Number of inch threads: 18
-
Inch thread range: 12 to 52 TPI
-
Number of metric threads: 10
-
Metric thread range: 0.4 to 2.0 mm
-
Bed construction: Cast iron
-
Overall dimensions: 28″ x 12″ x 12″
-
Weight: 75 lbs
-
Warranty: 3 years
Comes With
-
Three-jaw chuck
-
Complete set of change gears
-
Threading dial indicator
-
Chip tray
-
Splash guard
FAQ
Who is the CX704 mini metal lathe designed for?
The CX704 is well suited to hobby machinists, home workshops, and users working on small metal turning and threading projects.
Does the CX704 have variable speed control?
Yes. The lathe has variable speed control with a low range of 0 to 1,100 RPM and a high range of 0 to 2,500 RPM.
Can the spindle rotate in both directions?
Yes. A forward and reverse switch controls the direction of spindle rotation.
Can this lathe cut both inch and metric threads?
Yes. The CX704 can cut 18 inch thread sizes from 12 to 52 TPI and 10 metric thread sizes from 0.4 to 2.0 mm.
What are the spindle and tailstock tapers?
The spindle uses an MT3 taper, and the tailstock uses an MT2 taper.
What is the distance between centres?
The distance between centres is 12″.
What is included with the CX704?
The lathe includes a three-jaw chuck, a complete set of change gears, a threading dial indicator, a chip tray, and a splash guard.
What warranty is included?
The CX704 is covered by a three-year warranty.
