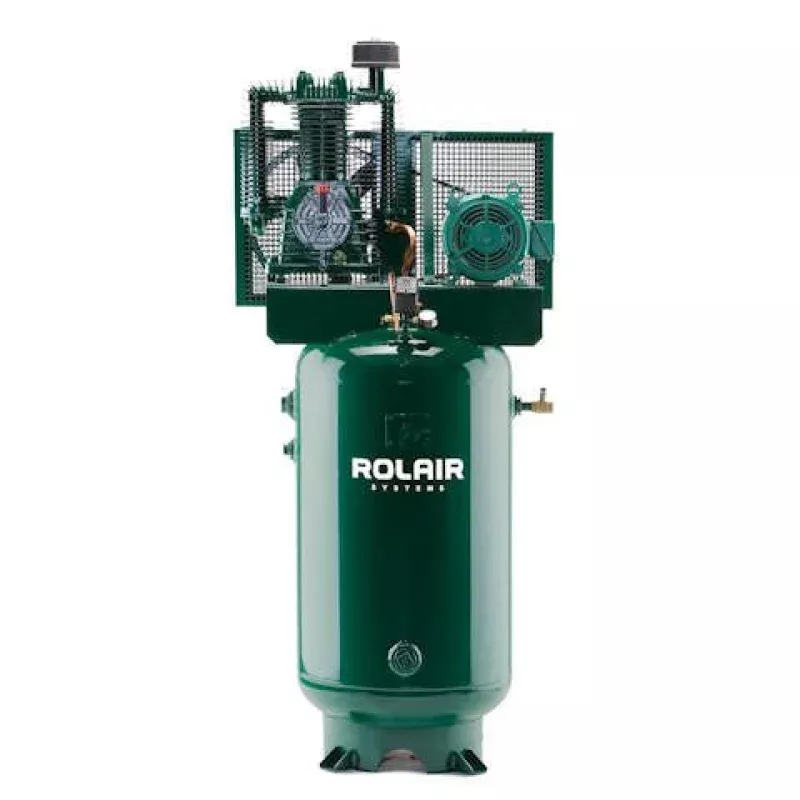

7.5hp Two-Stage Industrial Air Compressor

Original price was: $3,351.43.Current price is: $1,745.03.

Sale!
SKU: SVPNEUMATIC2541 Category:
Share

Stationary Electric Air Compressors

ABOUT THE PUMP

  • Two-Stage
  • Cast-Iron Cylinders
  • Aluminum Head and Crankcase for Faster Heat Dissipation
  • Ball Bearings
  • Splash Lubricated
  • Bearing Inserts on Connecting Rods
  • Swedish Lamellar Reed Valves
  • Oil Sight Gauge
  • Low RPMs to Ensure Long Life and Trouble-Free Performance

ABOUT THE MOTOR

  • 1740 RPM
  • 60 Hz
  • Open Drip-Proof Motor
  • Single Phase Models Available in 208 and 230 Volt
  • Three Phase Models Available in 208, 230, and 460 Volt

STANDARD EQUIPMENT

  • Pressure Switch – Start/Stop Operation,145-175 PSI Settings, On/Off Switch
  • Automatic Unloading Device for Loadless Starts
  • Heavy-Duty Brass Shut-Off Valve
  • Pressure Gauge, 0-300 PSI in 5 lb. Graduations
  • Safety Relief Valve – ASME Approved
  • Multiple V-Belt Drive
  • Intake Filter/Silencer with Replaceable Element
  • Totally Enclosed Steel Belt Guard

SPECIFICATIONS

HORSE POWER 7.5 HP CFM DISPLACED 30.4 – 32.3 CFM @ 175 PSI CFM DELIVERED 23.7 – 24.8 CFM @ 175 PSI COUNTRY OF ORIGIN Compressor Origin.pdf

ADDITIONAL MODELS

MODEL HP PHASE TANK SIZE MOTOR RPM CFM DISPLACED CFM DELIVERED LENGTH WIDTH HEIGHT APPROX. SHIPPING WEIGHT H75160K30 7.5 Single 60 Gallons, Horizontal 1740 32.3 @ 175 PSI 23.5 @ 175 PSI 52″ 20″ 49″ 512 lb. V75180K30 7.5 Single 80 Gallons, Vertical 1740 32.3 @ 175 PSI 23.5 @ 175 PSI 30″ 24″ 77″ 562 lb. H75112K30 7.5 Single 120 Gallons, Horizontal 1740 32.3 @ 175 PSI 23.5 @ 175 PSI 72″ 30″ 53″ 682 lb. V75112K30 7.5 Single 120 Gallons, Vertical 1740 32.3 @ 175 PSI 23.5 @ 175 PSI 40″ 30″ 74″ 697 lb. H75360K30 7.5 Three 60 Gallons, Horizontal 1740 32.3 @ 175 PSI 23.5 @ 175 PSI 52″ 20″ 49″ 507 lb. V75380K30 7.5 Three 80 Gallons, Vertical 1740 32.3 @ 175 PSI 23.5 @ 175 PSI 30″ 24″ 77″ 557 lb. H75312K30 7.5 Three 120 Gallons, Horizontal 1740 32.3 @ 175 PSI 23.5 @ 175 PSI 72″ 30″ 53″ 677 lb. V75312K30 7.5 Three 120 Gallons, Vertical 1740 32.3 @ 175 PSI 23.5 @ 175 PSI 40″ 30″ 74″ 692 lb. H75160K50 7.5 Single 60 Gallons, Horizontal 1740 30.4 @ 175 PSI 23.7 @ 175 PSI 26″ 52″ 52″ 580 lb. V75180K50 7.5 Single 80 Gallons, Vertical 1740 30.4 @ 175 PSI 23.7 @ 175 PSI 26″ 30″ 80″ 630 lb. H75112K50 7.5 Single 120 Gallons, Horizontal 1740 30.4 @ 175 PSI 23.7 @ 175 PSI 30″ 72″ 56″ 750 lb. V75112K50 7.5 Single 120 Gallons, Vertical 1740 30.4 @ 175 PSI 23.7 @ 175 PSI 32″ 40″ 77″ 765 lb. H75360K50 7.5 Three 60 Gallons, Horizontal 1740 30.4 @ 175 PSI 23.7 @ 175 PSI 26″ 52″ 52″ 575 lb. V75380K50 7.5 Three 80 Gallons, Vertical 1740 30.4 @ 175 PSI 23.7 @ 175 PSI 30″ 26″ 80″ 625 lb. H75312K50 7.5 Three 120 Gallons, Horizontal 1740 30.4 @ 175 PSI 23.7 @ 175 PSI 72″ 30″ 56″ 750 lb. V75312K50 7.5 Three 120 Gallons, Vertical 1740 30.4 @ 175 PSI 23.7 @ 175 PSI 40″ 32″ 77″ 760 lb.

DOCUMENTS

V75180K30 Spec Sheet

Electric Stationary Owner’s Manual
