5 HP Two-Stage Industrial Air Compressor

Stationary Electric Air Compressors

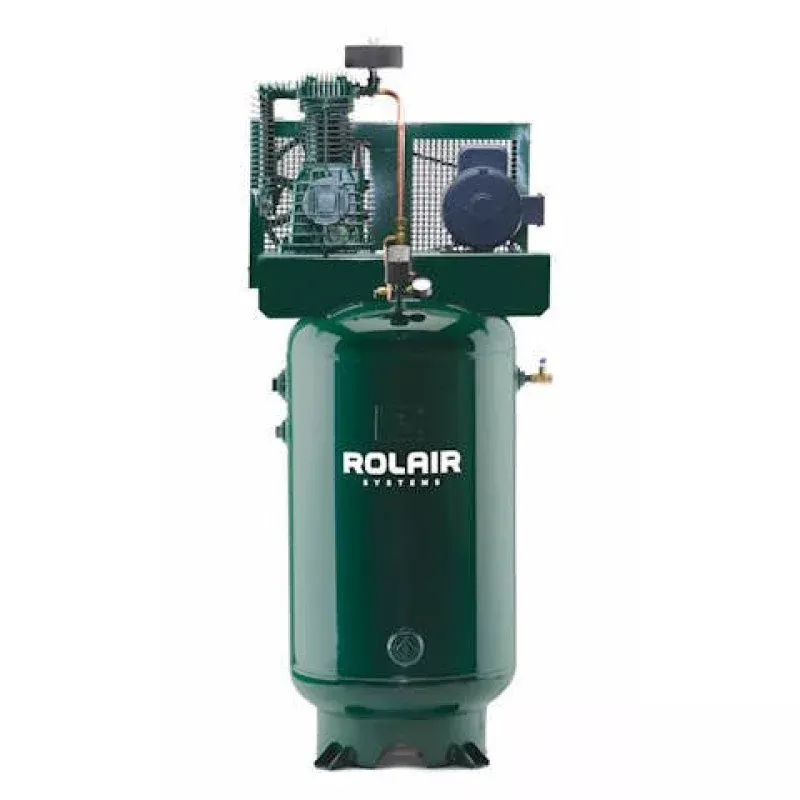

5 HP, two-stage electric stationary air compressors on a variety of tank configurations. Model V5180K30 shown.

Optional Equipment: Magnetic Starter, Automatic Tank Drain, Low Oil Shut Down, Vibration Pads, Dual Controls, Head Unloader, Refrigerant Air Dryer, Air Cooled Aftercooler

About The Pump

• Two-Stage
• Cast-Iron Cylinders
• Aluminum Head and Crankcase for Faster Heat Dissipation
• Ball Bearings
• Splash Lubricated
• Bearing Inserts on Connecting Rods
• Swedish Lammelar Reed Valves
• Oil Sight Gauge
• Low RPMs to Ensure Long Life and Trouble-Free Performance

About The Motor

• 1740 RPM
• 60 Hz
• Open Drip-Proof Motor
• Single Phase Models Available in 208 and 230 Volt
• Three Phase Models Available in 208, 230, and 460 Volt

Standard Equipment

• Pressure Switch – Start/Stop Operation
• 145-175 PSI Settings
• On/Off Switch
• Automatic Unloading Device for Loadless Starts
• Heavy Duty Brass Shut-Off Valve
• Pressure Gauge, 0-300 PSI in 5 lb. Graduations
• Safety Relief Valve – ASME Approved
• Multiple V-Belt Drive
• Intake Filter/Silencer with Replaceable Element
• Totally Enclosed Steel Belt Guard

Specifications

HORSE POWER 5 HP CFM DISPLACED 20.6 – 23.1 CFM CFM DELIVERED 15.3 – 18.0 CFM LUBRICATION TYPE Splash Lubrication REED VALVE SYSTEM Yes (Standard) NUMBER OF CYLINDERS 2 COUNTRY OF ORIGIN Compressor Origin.pdf

Additional Models

MODEL

HP

PHASE

TANK SIZE

MOTOR RPM

CFM DISPLACED

CFM DELIVERED

H5160K30

5

Single

60 Gallons, Horizontal

1740

23.1 @ 175 PSI

18.0 @ 175 PSI

V5160K30

5

Single

60 Gallons, Vertical

1740

23.1 @ 175 PSI

18.0 @ 175 PSI

H5112K30

5

Single

120 Gallons, Horizontal

1740

23.1 @ 175 PSI

18.0 @ 175 PSI

V5112K30

5

Single

120 Gallons, Vertical

1740

23.1 @ 175 PSI

18.0 @ 175 PSI

H5360K30

5

Three

60 Gallons, Horizontal

1740

23.1 @ 175 PSI

18.0 @ 175 PSI

V5360K30

5

Three

60 Gallons, Vertical

1740

23.1 @ 175 PSI

18.0 @ 175 PSI

V5380K30

5

Three

80 Gallons, Vertical

1740

23.1 @ 175 PSI

18.0 @ 175 PSI

H5312K30

5

Three

120 Gallons, Horizontal

1740

23.1 @ 175 PSI

18.0 @ 175 PSI

V5312K30

5

Three

120 Gallons, Vertical

1740

23.1 @ 175 PSI

18.0 @ 175 PSI

V5180K30

5

Single

80 Gallons, Vertical

1740

23.1 @ 175 PSI

18.0 @ 175 PSI

H5160K28

5

Single

60 Gallons, Horizontal

1740

20.6 @ 175 PSI

15.3 @ 175 PSI

V5160K28

5

Single

60 Gallons, Vertical

1740

20.6 @ 175 PSI

15.3 @ 175 PSI

V5180K28

5

Single

80 Gallons, Vertical

1740

20.6 @ 175 PSI

15.3 @ 175 PSI

H5112K28

5

Single

120 Gallons

1740

20.6 @ 175 PSI

15.3 @ 175 PSI

V5112K28

5

Single

120 Gallons, Vertical

1740

20.6 @ 175 PSI

15.3 @ 175 PSI

H5360K28

5

Three

60 Gallons, Horizontal

1740

20.6 @ 175 PSI

15.3 @ 175 PSI

V5360K28

5

Three

60 Gallons, Vertical

1740

20.6 @ 175 PSI

15.3 @ 175 PSI

V5380K28

5

Three

80 Gallons, Vertical

1740

20.6 @ 175 PSI

15.3 @ 175 PSI

H5312K28

5

Three

120 Gallons, Horizontal

1740

20.6 @ 175 PSI

15.3 @ 175 PSI

V5312K28

5

Three

120 Gallons, Vertical

1740

20.6 @ 175 PSI

15.3 @ 175 PSI
