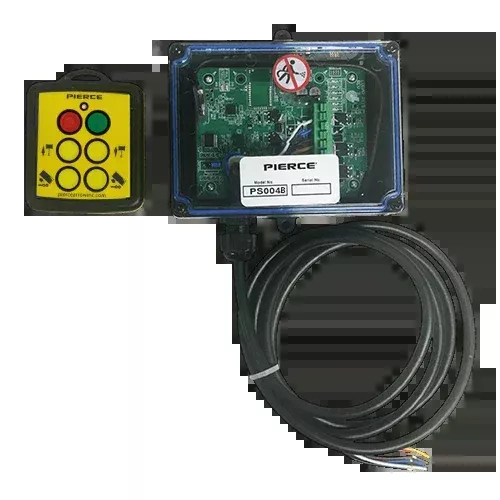

Complete plug-and-play wireless control system – includes the handheld transmitter and the receiver, coded together at the factory and ready to wire to your equipment. Operates 4 functions.
The 4 Function Roll-Off Wireless Control System (PS004B) gives you 4-function wireless control with a 150 ft (45 m) range. DC FET output switching, 3 A per output, 12/24V DC. This system ships with roll-off trailer firmware for a winch and hydraulic pump option. Its master output is active only on the hydraulic pump functions (F3 and F4), not on every function.
How do I know this system fits my equipment?
Match the function count to the number of outputs you need to operate – 4 here – and confirm your power supply: this system runs on 12/24V DC. Each FET output is rated to 3 A, with the system rated to 5 A total — enough to switch most solenoids and valves — and the solid-state design trips its overload at 5 A to protect the board. The transmitter and receiver ship coded to each other, so the system works out of the box.
- 4 functions of wireless control
- Handheld transmitter – IP 67 rated
- FET receiver – DC output switching, 3 A per output (5 A overload auto-shutdown), 12/24V DC, IP 67 rated
- 12/24V DC operating voltage
- 150 ft (45 m) operating range
- Master output – active only on hydraulic pump functions F3 & F4 (roll-off firmware)
- PIERCE SKU PS004B
Other PIERCE wireless systems: the PS004 4 Function Wireless System or PS002 2 Function Wireless System or PS002TS 2 Function Dump Trailer System. Replacement transmitters and receivers are sold separately.
