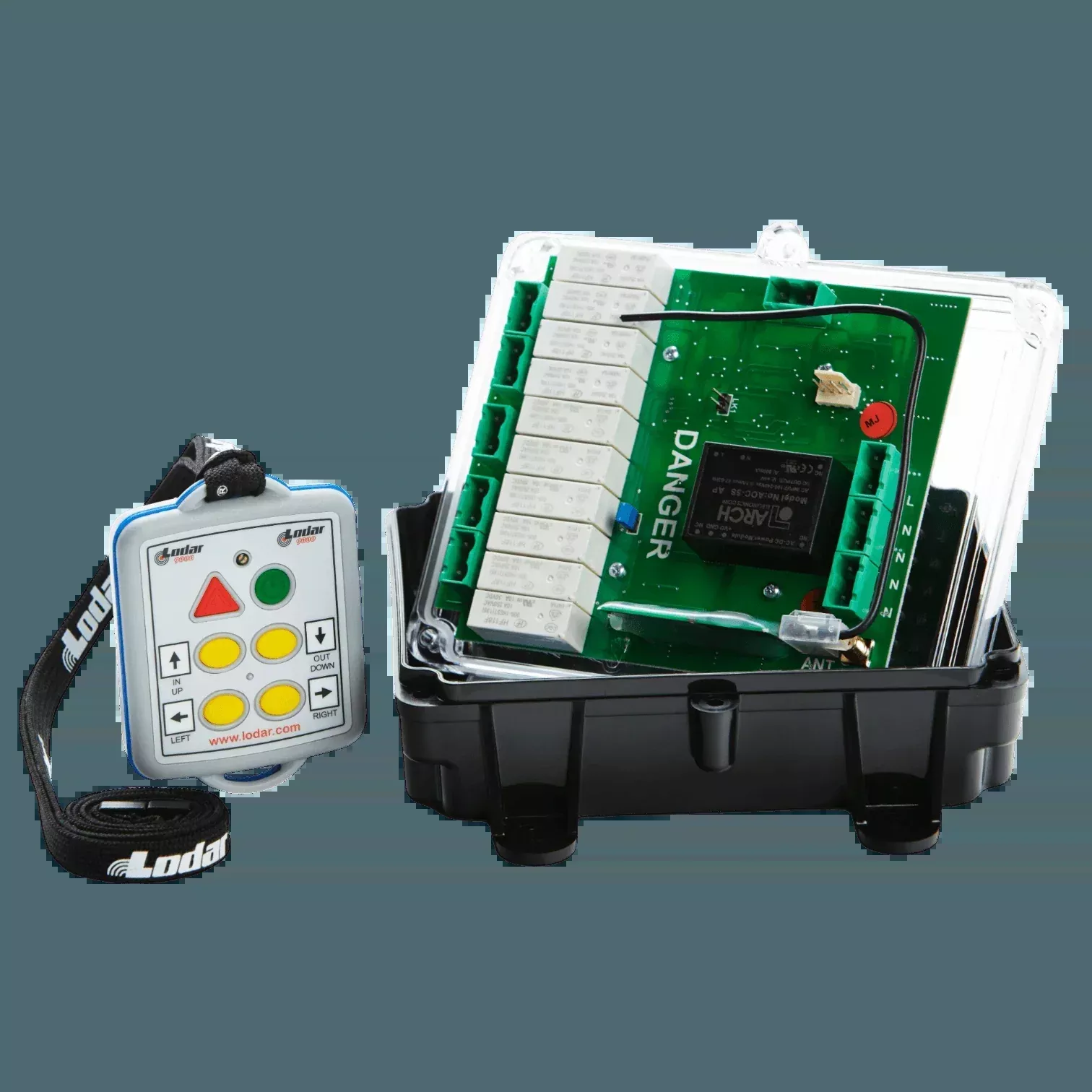

Complete plug-and-play wireless control system – includes the Mini handheld transmitter and the 110V receiver, coded together at the factory and ready to wire to your equipment. Operates 4 functions on the Lodar 9 Series.
The 4 Function Lodar Mini Wireless System (96004-8) gives you 4-function wireless control with a 150 ft (45 m) range. Mechanical-relay output switching, 10 A per output, 110/220V AC. It includes a master output – an additional output that energizes whenever any function is operated, for equipment that has to run alongside the controls (a hydraulic power unit during a lift, or a beacon while winching).
How do I know this system fits my equipment?
Match the function count to the number of outputs you need to operate – 4 here – and confirm your power supply: this system runs on 110/220V AC. The mechanical relay receiver runs off 110/220V AC mains rather than a 12V battery, rated to 10 A per output. The transmitter and receiver ship coded to each other, so the system works out of the box.
- 4 functions of wireless control
- Mini transmitter – IP 67 rated
- 110V receiver – mechanical relays, 10 A per output, 110/220V AC (90-264 VAC), IP 67 rated
- 110/220V AC operating voltage
- 150 ft (45 m) operating range
- Master output – fires on every function for run-along equipment
- Lodar SKU 96004-8
Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.
⚠️ 110V installation requires a certified electrician. Confirm circuit amperage, grounding, and overcurrent protection before energizing.
Want a different form of the same 4-function Lodar system? Compare the 4 Function Lodar IP Wireless System or 4 Function Lodar Standard Wireless Air System. Replacement handsets and receivers are sold separately.
