Replacement transmitter for an existing Lodar 9 Series wireless system — a transmitter is the handheld unit and is not a standalone product. It pairs with a matching receiver on the same series and function count.

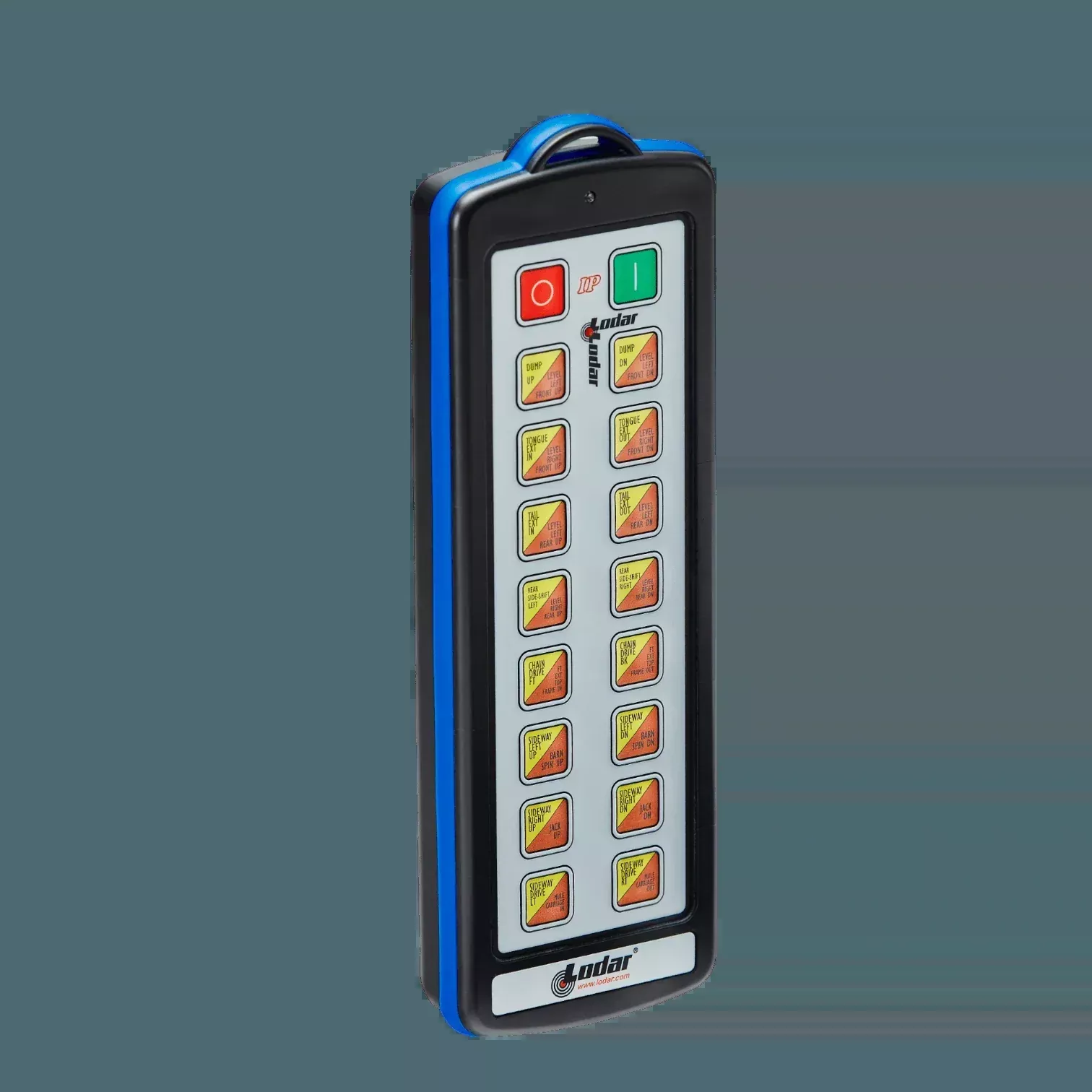

The 32 Function Lodar IP Shift Transmitter (92332TX-8) is the Industrial Pro (IP) shift handheld for a Lodar 9 Series system, sending 32 functions of control to the receiver on your equipment. It has a tactile dome PCB keypad with label pockets, runs on 4× AAA batteries, and reaches a 150 ft (45 m) operating range. A shift button expands the keypad, so it commands all 32 functions from a 16-button layout.
Will this transmitter work with my receiver?
Match three things: the series (9 Series), the function count (32), and the receiver it was coded to. Transmitters and receivers are paired on the same RF band, so replace a 9 Series transmitter with a 9 Series transmitter. If you are replacing a lost or damaged handset, confirm the receiver model before ordering.
- 32 functions of control
- IP Shift transmitter — tactile dome PCB keypad with label pockets
- Operates 13°F to 104°F (-10°C to 40°C)
- Powered by 4× AAA batteries
- 150 ft (45 m) operating range
- Shift keypad — commands 32 functions from a 16-button layout
- Lodar SKU 92332TX-8
Match the trailing code. Lodar 9 Series transmitters and receivers carry a trailing match number. Check the unit you are replacing: no number means -8, the most common code we carry, and some systems use -3. If your existing system or part is coded anything other than -8, contact us so we send the correct unit.
This is a replacement part for a 32-function 9 Series system.
