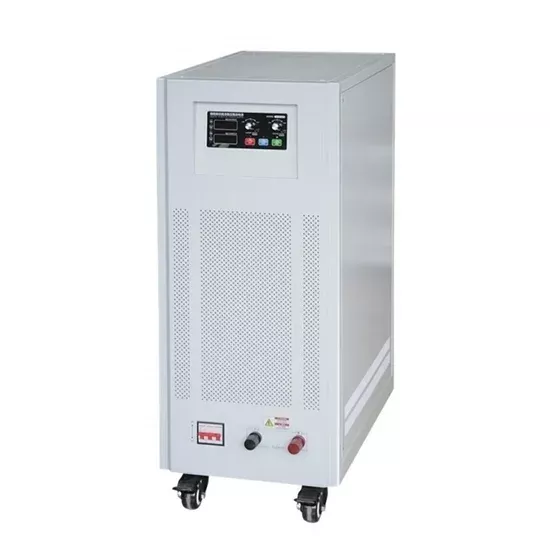

30 volt 200 amp variable linear DC power supply caters to a diverse array of applications in electronics, prototyping, and testing. Its linear configuration plays a pivotal role in minimizing output noise, thereby augmenting the stability of interconnected circuits. This adjustable linear DC power supply offers precise adjustments for voltage and amperage settings, ensuring optimal performance and safety for connected devices.
Specification
| Model | ATO-JK30200S |
| Input Voltage | 110V or 220V AC (+/- 10%) |
| Output Voltage Range | 0-30V |
| Output Current Range | 0-200A |
| Output Power | 6000W |
| Frequency | 50Hz/60Hz |
| Output Type | Dual |
| Display | 3 digit |
| Display Accuracy | ≤ ±0.4%＋3d |
| Voltage Display Resolution | 10mV |
| Current Display Resolution | 10mA |
| Efficiency | >60% |
| Voltage Regulation | |
| Load Regulation (CV) | 1×10-4+8mV |
| Line Regulation (CV) | 1×10-4+3mV |
| Ripple & Noise (P-P) | 0.8mV |
| Temperature Coefficient | 300PPｍ/℃ |
| Current Regulation | |
| Load Regulation (CC) | ≤5mA |
| Line Regulation (CC) | 2×10-4+3mV |
| Temperature Coefficient | 500PPｍ/℃ |
| Others | |
| Protection | Over Load and Over Voltage Protection |
| Operating Ambient | 0℃ to + 40℃/ 85%RH |
| Storage Ambient | -10℃ to + 80℃/ 80%RH |
| Certification | CE, RoSH |
| Warranty | 12 Months |
| Size | 530 (W) x 430 (H) x 200 (D) mm |
| Weight | 170kg |
| Package List | 1 x DC Power Supply Host, 1 x User Manual |
Tips: Can I use a variable linear DC power supply for charging batteries?
Yes, you can use a variable linear DC power supply for charging batteries, but it requires careful consideration. Ensure that the power supply voltage matches the battery’s charging specifications, and the current output is within the battery’s recommended charging current. Linear power supplies are known for stability but may generate more heat during prolonged use. Monitoring the charging process is crucial to prevent overcharging, which can damage the battery. Additionally, some advanced batteries, like lithium-ion batteries, may require specific charging algorithms not provided by basic linear power supplies. In such cases, a dedicated battery charger with the appropriate charging profile is recommended to ensure safe and efficient charging. Always refer to the battery manufacturer’s guidelines for proper charging procedures.
