Description:

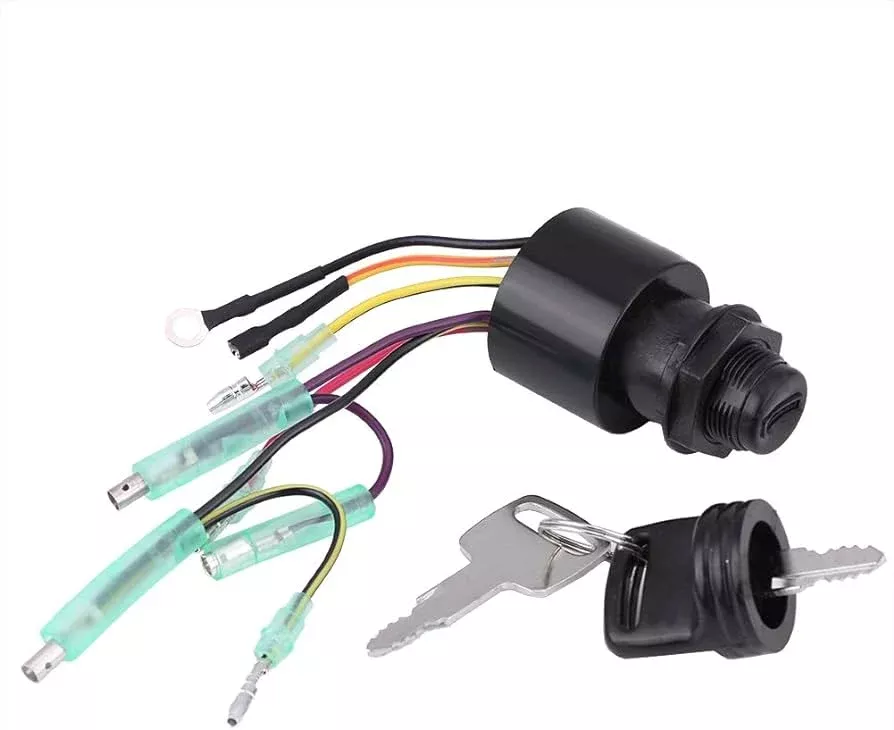

For: Mercury/MercruiserSWITCH ASSEMBLY IgnitionKey Features:•Maximum corrosion protection – eliminates oxidation•Inner seal between cylinder lock and contact plate•Non-conductive housing eliminates potential shorts•Push to ChokeAdditional Details:•Back Up Nut: Not Required•Face Nut: Hex Black Plastic•Hole Size: 7/8″•Length: Short: 5/8″ maximum panel thickness•Material: Marine grade glass-filled Polyester•Rated Choke: 7 Amp @ 12v DC•Rated Ignition: 15 Amp @ 12v DC•Rated Solenoid: 30 Amp @ 12v DC•Terminal Type: 6 Colour Coded Wire Leads/Potted•Switch Positions: Off – Run – Start•Type: 3 Position MagnetoInterchange:Mercury• 17009A2, 17009A5
