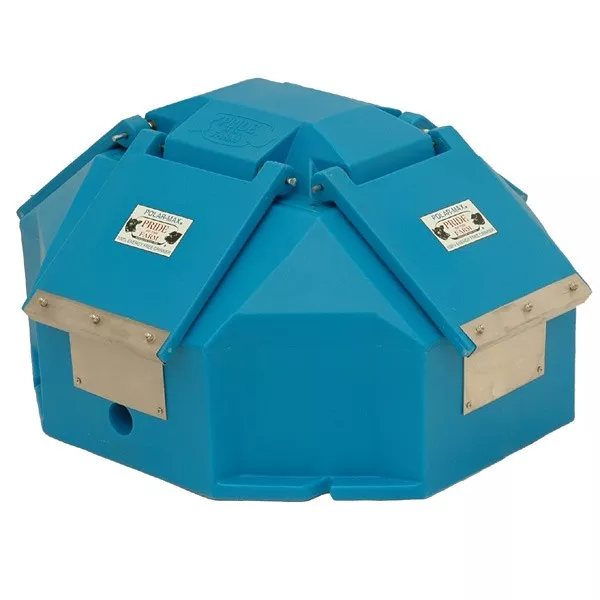

Fourteen Gallon Energy Free Automatic Waterer
POLAR-MAX® DRINKERS 100% ENERGY FREE
Simple Installation – can be fitted on existing pads; no heat well needed.
Attractive Design – you’ll be proud to have these units in your operation.
Animal Friendly Flaps – no ball or float closures to ice.
Nature’s ground water temperature does this job. POLAR-MAX® DRINKERS operate like thermos all year long.
Loaded with these PRIDE OF THE FARM® quality features:
1. Stainless steel bolts and removable top afford easy access to plumbing.
2. Unique baffles guard against icing and keep valve operating under severest conditions.
3. Notched flanges for easy anchoring.
4. Achieve a quality installation with PRIDE OF THE FARM® anchor package. Order Model 383344 which contains 4 anchor bolts, 4 flat washers, 4 plates and 4 nuts, all stainless steel.
5. Weather strip and an insulated sleeve for the supply line come with each unit.
6. Simple installation – no heat well needed; use an 8-12 inch tile; can be fitted on most existing pads.
7. Sealed bottom keeps out moisture and rodents.
8. Two 2-inch drain holes for fast clean out.
9. Foam insulation between walls has an R-value of 7.14 inch.
10. Double wall DURAROCK® construction contains hindered amine light stabilizer, the most effective ultraviolet inhibitor.
11. Seamless sidewall cannot leak.
12. Tolerance to water level – you don’t have to worry about summer and winter water levels. (If the water level is too high on a ball or float type closure, closures can stick).
13. Dependable, non siphoning valve – proven and trouble free.
14. Animal friendly insulated flaps. Livestock can drink out of both flaps at the same time – not always so with a ball closure. No pulleys and cables to foul and rust.
CLICK HERE TO VIEW THE INSTALLATION INSTRUCTIONS
Please allow approximately 5-7 days for this product to ship. If you need this product urgently, please contact us and we will see what we can do to expedite it. Thank you.
(Product is considered oversized for shipping. Dimensional weight is 123 lbs.)
Read Why Our Flap Is Better
|
MODEL NUMBER |
APPROXIMATE CAPACITY |
SIZE INCHES (CM) |
VALVE |
SHIPPING WEIGHT LBS (KG) |
||||||
|
ANIMALS* |
WATER |
DRINK OPENING |
DRINK HEIGHT |
OVERALL WIDTH** |
OVERALL LENGTH** |
OVERALL HEIGHT** |
||||
| GALLONS | LITERS | |||||||||
| WPM14 designed for hogs | 200 hogs 100 sows |
14 |
53 |
7 x 7.5(17.8 x 19.1) |
11.0″ (27.9) | 35″ (88.9) | 39″ (99.1) | 20″ (50.8) | VP124 | 74 (33.6)+ |
